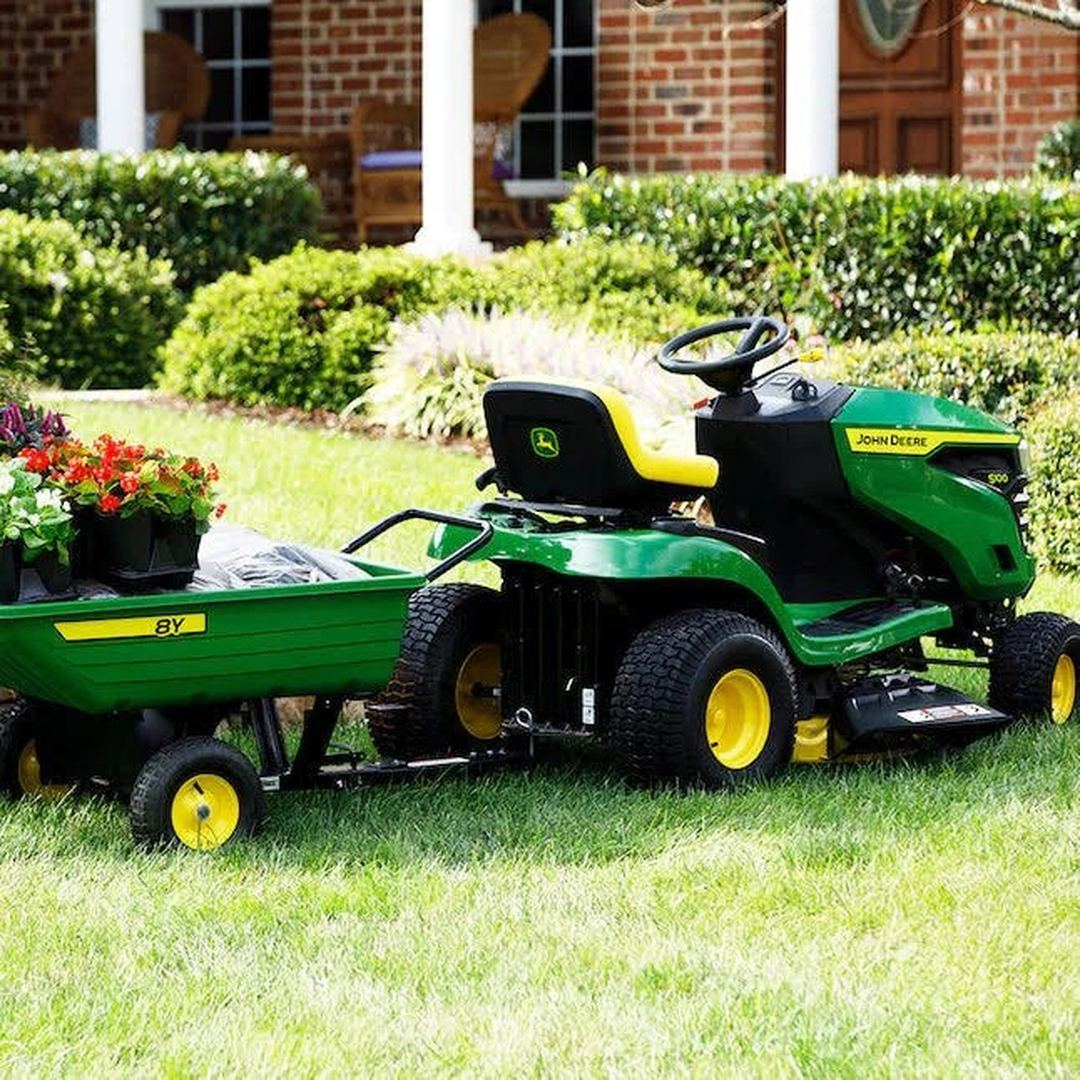

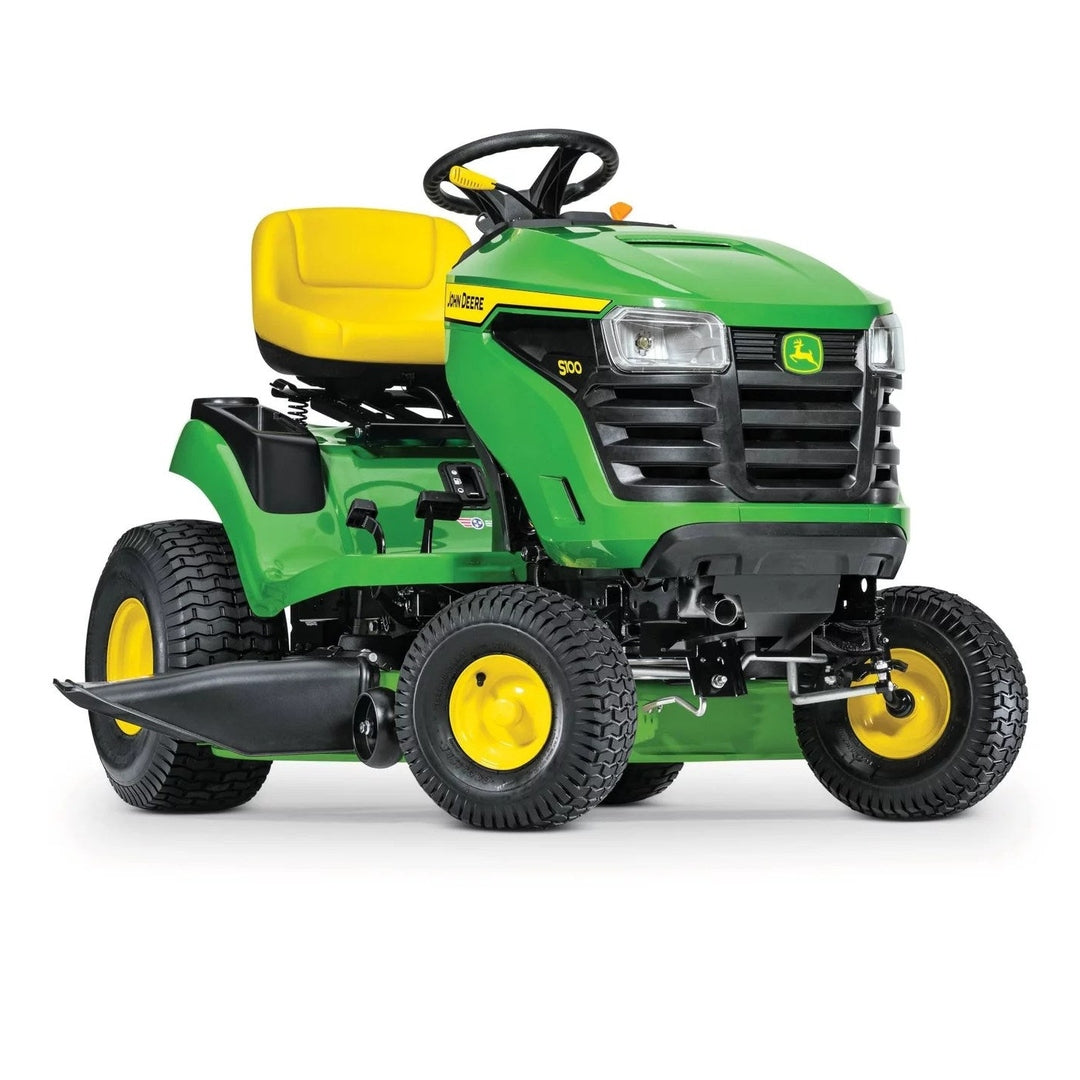

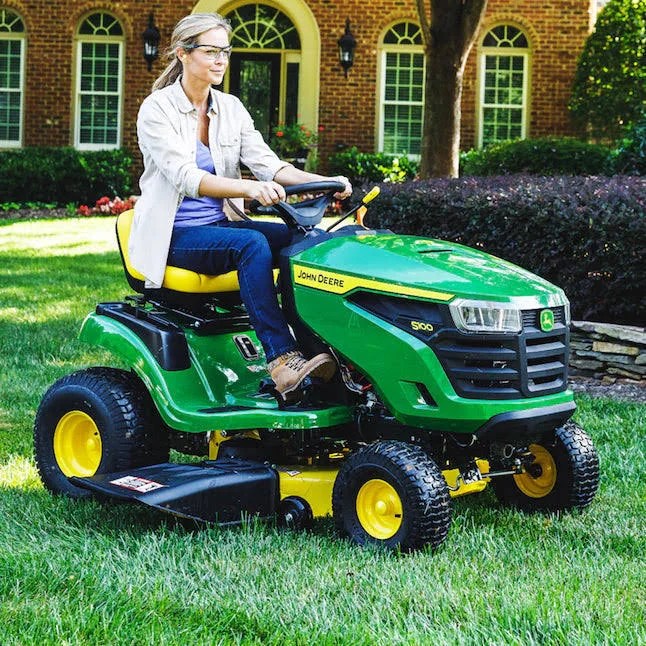

John Deere S100 42 in. 17.5 HP GAS Hydrostatic Riding Lawn Tractor

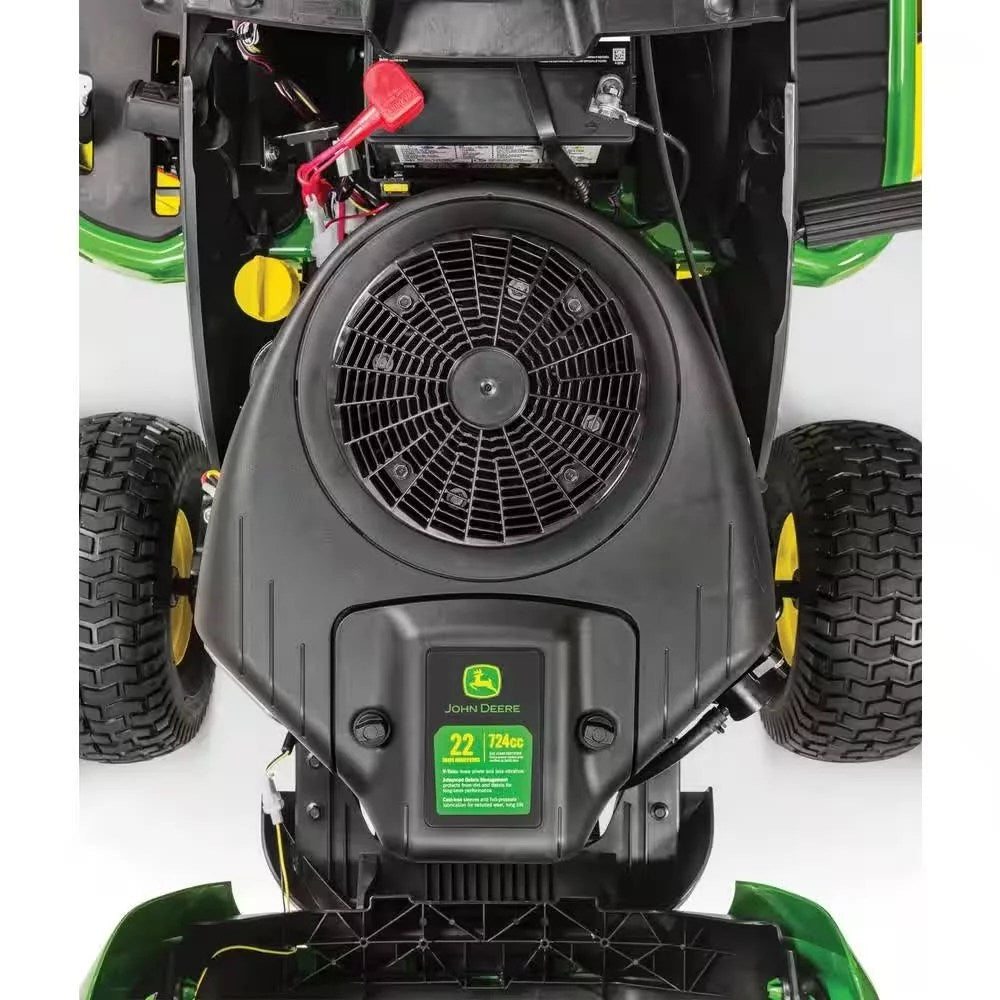

17.5-hp (13.0-kW) engine



Engine oil filter and fuel filter

A 17.5-hp (13.0-kW), single-cylinder engine has plenty of power and torque to handle tough mowing, mulching, and bagging:

• Electronic ignition for fast starts
• Spring-return feature to ensure the operator will not mistakenly leave the throttle lever in the choke position
• Cast-iron cylinder liner for long engine life
• Overhead valves for excellent power and fuel economy
• Anti-vibration system
• Full-pressure lubrication and oil filter for cleaner oil, prolonging engine life, and extending the time between oil changes
  • More effective when operating the tractor on an incline
• Large fuel filter for trouble-free operation

No-tools oil drain valve

The no-tools oil drain valve is easy to access when changing engine oil.

FUEL TANK

Convenient fuel filler opening

• The capacity is 2.4 U.S. gal. (9.1 L).
• The fuel filler opening is conveniently located under the seat.
  • Filling the tank without spilling is easy.
  • A tethered fuel tank cap is more convenient.
  • The sealed fuel cap helps keep vapors inside the tank.

  • Frame made of full-length welded steel for reliability

    Solid one-piece frame



    Solid one-piece frame

    The solid one-piece frame is constructed of 12-gauge, 0.105-in. (2.66-mm) steel:

    • Full-length, robotically welded frame design has high-strength steel rails for added strength and long life.
    • One-piece, steel fender deck is bolted to the frame.

    CAST-IRON FRONT AXLE WILL NOT BEND

    Front axle and wheel spindle

    The front axle is constructed of solid cast iron that will not bend:

    • Automotive-like steering system with sector and pinion steering gears and single drag link with a tie rod provides a very strong, low-effort, and tight-turning system.
    • Three grease fittings, on both steering spindles and center pivot, allow for regular lubrication to help maintain easy steering and minimize wear.
    • Large, 0.75-in. (1.9-cm) diameter wheel spindles provide excellent durability.

    FRONT BUMPER PROTECTS THE TRACTOR

    Front bumper



    Front bumper

    The front bumper is included on the S130, S140, S160, S170, and S180. It is available as an optional attachment for the S100, S110, and S120.

    • Additional front-end protection
    • Attractive, bold style

    CARGO MOUNT™ SYSTEM MAKES INSTALLATION OF REAR BAGGER AND OTHER ATTACHMENTS EASY

    Rear CargO Mount points



    Front CargO Mount points at the top of the dashboard

    Rear bagger is mounted with CargO Mount points



    Rear bagger is mounted with CargO Mount points

    The CargO Mount system is a combination of front- and rear-mounting points providing convenient and easy installation of the sun canopy, rear bagger, and other attachments.

    Snow removal is a strength of lawn tractors

    S140 Tractor with front blade, weights, and tire chains



    S160 Tractor with snow blower, weather enclosure, weights, and tire chains

    An advantage of lawn tractors is their ability to use equipment for snow removal. Lawn tractor owners can add a John Deere snow blower or front blade to make quick work of moving snow whenever the need arises. Weather enclosure and tire-chain attachments add comfort and performance.

    Equipment available for snow removal includes:

    • 44-in. (112-cm) Snow Blower
    • 46-in. (117-cm) Front Blade
    • Tire chains or TerraGrip traction belts
    • Weather enclosure
    • Weights



    Hydrostatic transmission gives an infinite choice of ground speeds

    Two-pedal speed/direction controls



    Forward speed control pedal in use

    A Kanzaki® Tuff Torq® hydrostatic transmission gives an infinite choice of speeds and makes changing the direction of travel easy. Side-by-side foot pedals control the speed and direction of travel:

    • Automotive-type accelerator controls ensure easy operation.
    • Operator can change direction without lifting foot off the platform.
    • Large pedal surface gives superior operator comfort.

    Hydrostatic transmission

    Appropriate transmissions are used in each model, depending on rear tire size and tractor performance requirements, to ensure excellent performance and reliability:

    • Tuff Torq TLT200 – S100, S110, S120, S130, S140, and S160
    • Tuff Torq K46 – S170 and S180

    Kanzaki and Tuff Torq are trademarks of Kanzaki Kokyukoki Mfg. Co., Ltd.

    Operator station designed for comfortable operation

    Comfortable operator station, right side



    Comfortable operator station, left side

    The operator station is designed for operator comfort and easy operation:

    • Controls are positioned where they are easy to reach and easy to use to control the tractor.
    • Steering wheel is positioned and angled to give the operator plenty of room and steering comfort.
    • Seat is positioned to provide the most comfortable operator position.

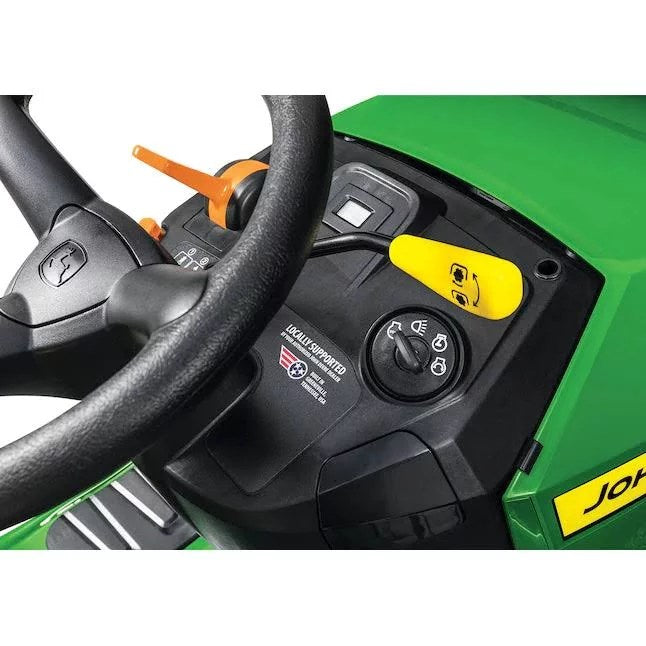

    Steering wheel and dash



    Wide footrest with debris channels

    Controls are easy to see and use:

    • Large, three-spoke steering wheel for greater operator comfort and control
    • Ignition switch is on the dash for starting ease

    Wide footrest areas with non-slip, anti-vibration floor mats are provided for operator comfort:

    • The wide footrest makes it easier to step over the mower deck while entering or exiting the seat.
    • Debris-removing channels help keep the footrest area clean and dry.

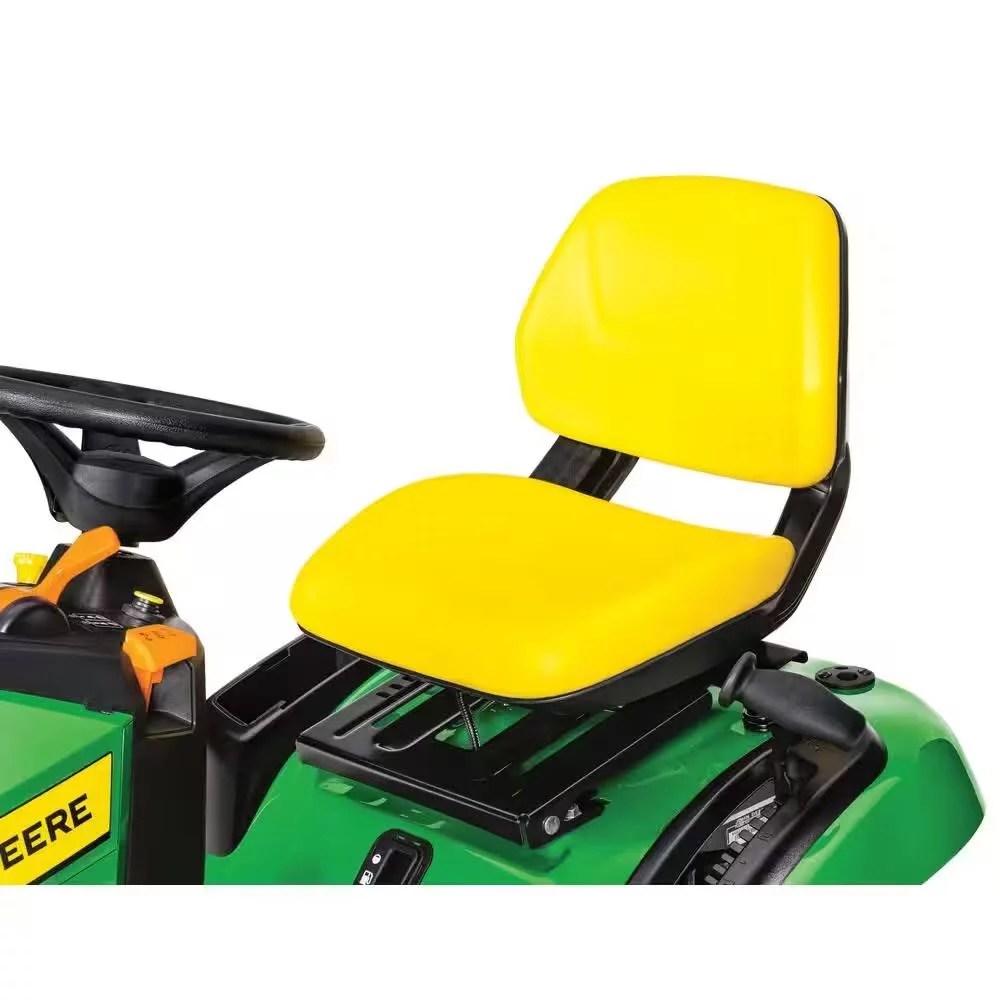

    Comfortable seat



    Easily adjusted seat and beverage holder

    The operator seat has an 11-in. (28-cm) back height. It can be easily adjusted forward or rearward while the operator is in the seat, with seat travel of 5.5 in. (14 cm) and 10 different positions.

    A beverage holder is located on the right-side fender for operator convenience.

    Seat springs give a smoother ride



    Seat tilted forward

    Two long seat springs give plenty of seat travel to smooth out the ride, keeping the operator comfortable while operating the tractor.

    Seat can be tilted forward for protection from the elements and to provide easy access to the fuel tank.

    Storage compartment and beverage holder

    A storage compartment and beverage holder on the right-side fender are conveniently located and easy to use.

    NOTE: A storage compartment cover is standard on S120, S130, S160, S170, and S180 Tractors and optional on the S100, S110, and S140.

    Key Specs

    Engine power	17.5 hp 13 kW
    Oil change	No-tools oil drain with replaceable filter
    Engine manufacturer/model	31R977 (M31)
    Transaxle type	TLT200 hydrostatic, two-wheel drive
    Transaxle control	Side-by-side pedals
    Rear tires	20×8-8
    Lift system type	Spring-assisted hand-grip lever
    Cutting width	Edge™ mower deck, 42 in. 107 cm
    U.S. warranty	2 year/120 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)

    Engine

    Power	17.5 hp 13 kW
    Displacement	30.5 cu in. 500 cc
    Manufacturer/model	31R977 (M31)
    Type	Overhead valve, full-pressure lube, oil filter
    Cylinders	One
    Governor	Mechanical
    Choke/speed control	Single lever with spring-return on choke
    Cooling method	Air
    Air cleaner	Cartridge
    Oil change	No-tools oil drain with replaceable filter

    Fuel system

    Type	Gasoline
    Fuel delivery	Pulse pump and carburetor
    Fuel gauge	Mechanical, viewable from seat
    Fuel tank location	Rear
    Fuel fill opening	Center, 1.75 in. 4.45 cm
    Fuel tank capacity	2.4 U.S. gal. 9.1 L

    Electrical system

    Battery	12 V 300 CCA
    Charging system	Regulated, 8 amp
    Engine starter	Bendix type
    Hour meter	Yes
    Headlights	Two standard, incandescent
    Taillights or reflector	No
    Backup lights	No
    Rear work lights	No
    12-V outlet	No

    Transaxle

    Type	Hydrostatic, 2-wheel drive
    Control	Side-by-side pedals
    Cruise control	No
    Oil cooler	Fins and fan on transaxle
    Oil filter	Yes, not serviceable
    Differential lock	No
    Forward speed	0-5.5 mph 0-8.9 km/h
    Reverse speed	0-3.2 mph 0-5.2 km/h
    Brakes	Internal wet disk

    Chassis

    Frame	Full-length welded steel
    Primer/paint	E-coat/powder
    Weight bracket	Optional rear
    Receiver hitch	No
    Front axle	Cast-iron front axle, powdered-metal front wheel bushings
    Spindle bushings	No
    Front tires	15×6-6
    Rear tires	20×8-8
    Hood material	Molded-in color material reduces sound, will not rust or dent
    Fender deck material	Stamped steel
    Floor mats	Yes, with debris removing channels
    Storage	Storage tray with optional cover
    Service interval decal	Yes
    Fender handles/grips	No
    Cup holder	Yes
    Equipment mounting	CargO Mount™ system
    Maximum towing capacity	500 lb 227 kg

    Steering

    Type	Sector and pinion with single drag link and tie rod
    Four-wheel steer	Not available on this model
    Steering wheel	Standard, diameter – 12 in. 30.5 cm
    Tilt steering wheel	No
    Turning radius	18 in. 45.7 cm
    Uncut circle radius	25 in. 63.5 cm

    Seat

    Type	One piece
    Seat back height	11 in. 28 cm
    Armrests	No
    Fore-aft adjustment	While seated, 5.5 in. 14 cm
    Seat suspension	Tilt, two coil springs

    Lift system

    Type	Spring-assisted hand-grip lever
    Hydraulic outlets	No
    Mower cut height	13 positions, 1-4 in. 2.5-10.2 cm
    Cut height increments	0.25 in. 0.64 cm
    Preset cut height	No

    Mower deck

    Type	Side discharge
    Cutting width	Edge™ mower deck, 42 in. 107 cm
    Construction	Stamped steel deck shell
    Mower deck material	Steel, 13 gauge 0.090 in. 2.3 mm
    Mower wash port	Yes
    Mower drive system	Manual power take-off (PTO)
    Mower wheels	Two
    Mower wheel adjustment	One bolt
    Mower level adjustment	Easy-level deck

    Mower attachability

    Type	Slide under tractor
    Front draft arms	One spring clip
    Rear draft arms	Two spring clips
    Mower wheels rotate	No
    Drive system	Single belt

    Safety

    Meets ANSI standard	Yes
    Meets OPEI standard	Yes
    Backup protection	Reverse Implement Option (RIO)
    Safety video	Yes

    Buyer’s notes

    Notes	Molded-in color material reduces sound, will not rust or dent Durable primer and powder paint finish Full-length welded steel frame
    Warranty	2 year/120 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)

    Optional equipment

    Rear bagger	2-bag, 6.5 bu 229 L
    Mulching system	Mulch cover or high-performance plug
    Front blade	46 in. 116.8 cm
    Snow blower	Two-stage, 44 in. 111.8 cm
    Sprayer	Tow-behind, 15 U.S. gal. 56.8 L Mounted, 15 U.S. gal. Tow-behind only, 25 U.S. gal. 94.6 L
    Spreader	Tow-behind only, 125-175 lb 57.7-80 kg
    Front bumper	Styled front bumper
    Weather protection	Weather enclosure
    Sun canopy	Sun canopy
    Bucket holder	Yes, single bucket
    Grass striping	Lawn striping kit
    Tow-behind tools	16

    Dimensions

    Height	40 in. 1016 mm
    Overall length	69.7 in. 1770 mm
    Wheelbase	48.9 in. 1242 mm
    Width with mower	55.2 in. 1402 mm
    Width with mower (deflector raised for storage)	46.5 in. 1181 mm
    Width without mower	39.2 in. 996 mm
    Weight	Mower, no fuel, 414 lb 188 kg

    Manufacturing location	Greeneville, Tennessee, USA
    Date collected	1-Dec-21
